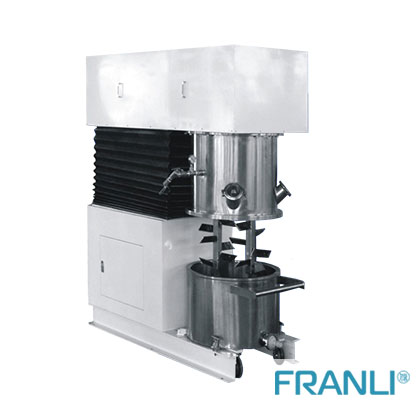

Multiple mixing tanks with double planetary mixer

The innovative double planetary mixer designed for viscous materials is equipped with stirring components and dispersing components. The low-speed stirring components will be driven by planetary gears according to the principle of planetary motion.

The stirring blades also rotate when they are revolving, so that the high-viscosity materials are scattered up and down and around in the container, so that the materials are continuously squeezed and kneaded from all directions, and the ideal effect of fully mixing can be achieved in a short time.

The high-speed dispersing part revolves together with the planetary blades and also rotates at high speed so that the high-viscosity materials are subjected to strong multi-dimensional shearing and dispersion mixing, which is multiple times the mixing efficiency of ordinary mixers.

 The high-speed dispersing parts are divided into a single dispersing shaft and a double dispersing shaft. How to choose depends on the viscosity of the customer's product. It is recommended that the viscosity of the material exceeds the toothpaste to choose the double dispersing shaft. The two double-frame agitators revolve and rotate on the barrel at the same time. The functions that can be realized include vacuuming, heating, and cooling. According to the material situation, the speed can be adjusted on the control panel. The same double planetary mixer can be used with multiple mixing barrels, and at the same time, it can be matched with a feeder to make the output faster and more efficient.

Performance characteristics of double planetary mixer equipment

The performance characteristic of the double planetary mixer is that the tank body can be heated by electricity, steam, water and oil in various ways.

The specially designed temperature measuring device will start running on the transmission shaft to ensure that the temperature error of the material is less than 1°C. The jacket of the main accessories, the bottom jacket, the inner coil of the jacket, and the deflector can realize cooling and stirring in the tank. The paddle can choose different speeds according to different processes and different viscosities. Because the stirring paddle revolves and rotates at the same time, frequency conversion speed regulation (frequency conversion motor) is used safely, and the speed measurement system will directly give the speed of the mixer at different times.

1. The material is operated in a vacuum state by the soft seal between the mechanical seal and the kettle body.

2. The kettle body can be heated in four ways: electricity, steam, water, and oil circulation heating.

3. The inner wall of the kettle is precisely processed and polished by large-scale equipment to make the inner wall smooth, and the scraper on the planetary frame can rotate smoothly to scrape off the material on the inner wall of the kettle without dead ends;

4. The stirrer in the kettle has a twist frame type, claw type, and frame type stirring paddle (multi-blade), which also rotates while revolving so that the materials are scattered, kneaded, and sheared to achieve the ideal mixing effect.

5. The revolution and rotation of the agitating paddle in the kettle adopts a frequency conversion motor to realize frequency conversion speed regulation and different speeds can be selected according to different processes and different viscosities.

Double planetary mixer manufacturer advantages

1、Production and research and development

Professional R&D team planning

2、Accessories production

The spirit of meticulous craftsmanship

3、Product display

Our efforts satisfy you

100L double planetary mixer main technical parameters

100L double planetary mixer volume：100L

Barrel specification (mm ): 600x500

Revolution motor (kW):7.5

Revolution speed (frequency conversion speed regulation) (RPM) : 0-60

Autorotation speed (frequency conversion speed regulation) (RPM) : 0-75

Scraper speed (frequency conversion speed regulation) (RPM) :0-60

Vacuum (MPa): ＜-0.098
