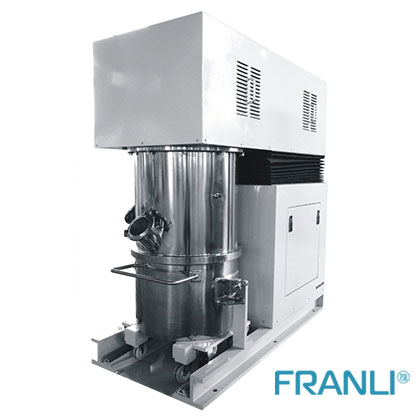

Double planetary mixer with high discharge efficiency

The double planetary mixer is especially suitable for the dissolution, mixing, dispersion, and reaction process from powder to high-viscosity and high-density materials. According to different production processes and material characteristics, different agitators can be selected (such as twist type, frame type, claw type, and multi-blade type)

Application of double planetary mixer

The double planetary mixer can also be called a viscous mixer, which is suitable for resin, coating, ink, paper, plastic, painting, polymer ion battery fluid and liquid ion battery fluid, electronic electrode slurry, adhesive, mold glue, silicone sealant, polyurethane sealant to mixing, reaction, dispersion, dissolution, homogenization, emulsification and other processes of liquid and liquid, solid and liquid materials in oxygen glue, ink, pigment, cosmetics, medicine, etc.

The principle of double planetary mixer

The double planetary mixer is innovatively equipped with a low-speed stirring part and a high-speed dispersing part for high-viscosity materials. The low-speed stirring part adopts planetary gear transmission according to the principle of asteroid rotation. The ideal mixing effect can be achieved in a short time.

The high-speed dispersing part revolves together with the planetary carrier, and at the same time rotates at a high speed, so that the material is subjected to strong shearing and dispersing mixing so that its effect is several times that of the ordinary mixer. Choose the appropriate one according to the viscosity of the material.

Two double-frame agitators revolve and rotate at the same time in the barrel, which can realize vacuuming, heating, and cooling, and the speed can be adjusted according to the situation. Equipped with multiple mixing barrels, the machine can be operated with multiple barrels. It is more convenient to match the discharge of the press machine.

Application range of double planetary mixer

All kinds of sealants, rubber, adhesive, battery slurry, paste, resin, etc.

Features: Simple operation, uniform mixing without dead ends, high production efficiency, and support for customization.

Parameters of double planetary mixer

1. Temperature measurement method: all models use PT100 temperature sensors to detect material temperature

2. The 200ML-1L model is desktop style, with all casings made of stainless steel 304

3. Double layer cooling water or thermal oil through the material barrel

4. The standard configuration of mixing slurry is Fried Dough Twists slurry, which is molded by one-time open mold casting without any welding to ensure accuracy

5. The standard configuration of the vacuum pressure gauge is a Panasonic digital vacuum gauge

6. The dispersed linear speeds of 500ML, 1L, and 2L are 7.85M/s, 9.15M/s, and 8.37M/S7, respectively. The material barrel is double layered and the bottom of the guide groove is supercooled with water or heat transfer oil. If heating is required, the customer's temperature exceeds 60 degrees Celsius and the barrel needs to be wrapped with insulation cotton. The customer needs to indicate in advance when ordering

8. There is no discharge method for the 200ML-1L material barrel. If a press machine is required, the discharge method from the press plate can be selected

9. The material bucket can be discharged from the bottom or from the front

10. The maximum heating temperature cannot exceed 200 degrees Celsius

 Double planetary mixer details

1. Strict material selection

Selecting excellent accessories, the overall structure is reasonable, durable, and practical

2. Stable performance

The product installation and operation are stable, with high conversion rate and good quality

3. Experienced

Manufactured by the manufacturer, from equipment manufacturing to installation and debugging, with complete professional personnel and rich practical experience

4. Various specifications

The double planet mixer has multiple specifications, which can be customized according to the actual requirements of customers
