Multi-Shaft Mixer

FLE has two types of the multi-shaft mixer, one is standing floor hydraulic lifting, this type of multi-shaft mixer is easy to move the tanks on the floor. You may need to purchase the hydraulic discharging machine with the filling machine together. Also has a tank with lugs to support the floor. This tank is fixed, and discharging by itself weight, or discharging by the pump. Which is most suitable for your factory, you may discuss with us before ordering this multi-shaft mixer.

l With hydraulic lift function

l Fully mixable and dispersible

l No working blind spot

l Speed control with VFD

Application:

Viscosity range of 10,000cps - 2,000,000cps, cream mixing, vulcanization, dispersion, grinding, polymerization processing. Silicone sealant, PU sealant, mechanical sealant, liquid silicone, resin, plastic, toothpaste, etc.

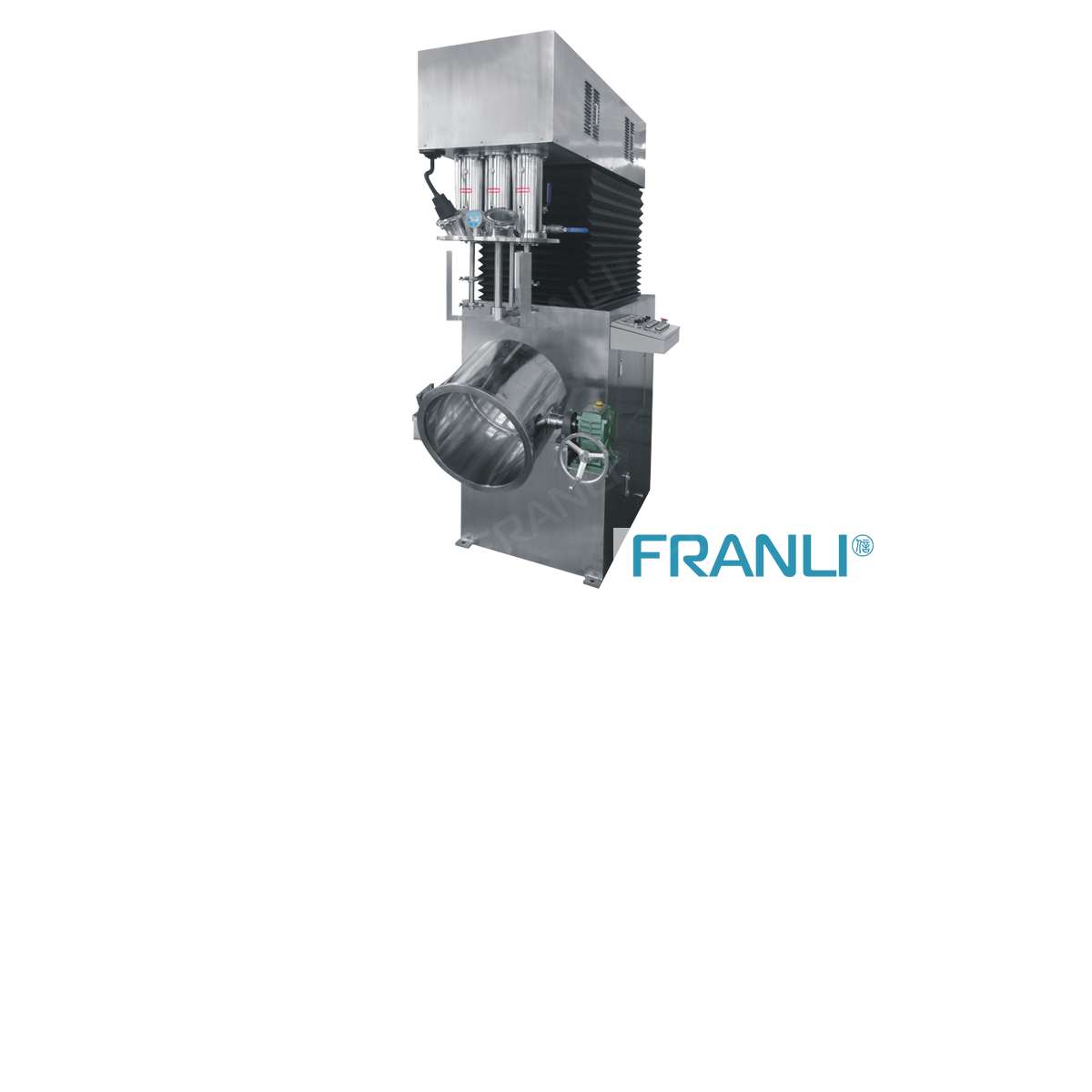

Main Parts

multi-shaft mixer

Muti shaft mixer is widely used in middle and high viscosity materials. It applies to materials with viscosity below 100000 cps and is suitable for the dispersion and mixing of coatings, inks, putty, adhesives, agricultural materials, lithium battery slurry, and other materials

And the multi-shaft mixer usually has 3-4nos shafts, hear shear emulsifying head, high-speed disc, butterfly mixer, and anchor blade; the user can choose the blades according to their requirements; the multi-shaft mixer has these four types of blades, which can have a higher shear to mix materials and have a better mixing effect.

Here are some features of the muti shaft mixer:

1. Suitable for middle and high viscosity material, which has a large viscosity range.

2. Dispersing and mixing at the same time, which gets a better grinding effect.

3. Vacuum system, heating, and cooling system are optional, which meet different demands of customers

4. The shaft is with hydraulic lifting, which can mix the material at different angles.

5. Double mechanical seal, which the sealing effect is good, and the end plane wear is small, getting the longer service time.

6. With frequency speed control, which can adjust the three-shaft speeds according to the mixing condition and material viscosity.

We also offer the pre-mixing machines such as a twin shaft mixer to mix the liquid and powder in advance, and the weighing system to measure the raw material, we also offer the powder feeding station, which can collect the dust when feeding powder raw material, which protects the worker and prevents environmental pollution.

If you are interested in the multi-shaft mixer, welcome to inquiry, FLE has a professional technical team and after-sales service, which can help for the whole line solution making, and timely technical answers.

Main Technical Parameters

Multi-Shaft Mixer parameters

Equipments
